콘트롤러



  제품명 : 콘트롤러
  모델명 : 682A16
  제조업체 : IMI Sensors
  가격 : 견적가
  결재방법 :
  최소주문량 :
  납기 : 8주
  운송방법 :
  반품여부 : 불가
  담당부서 / 담당자 : 기술영업 /
  연락처 : 032-624-0051

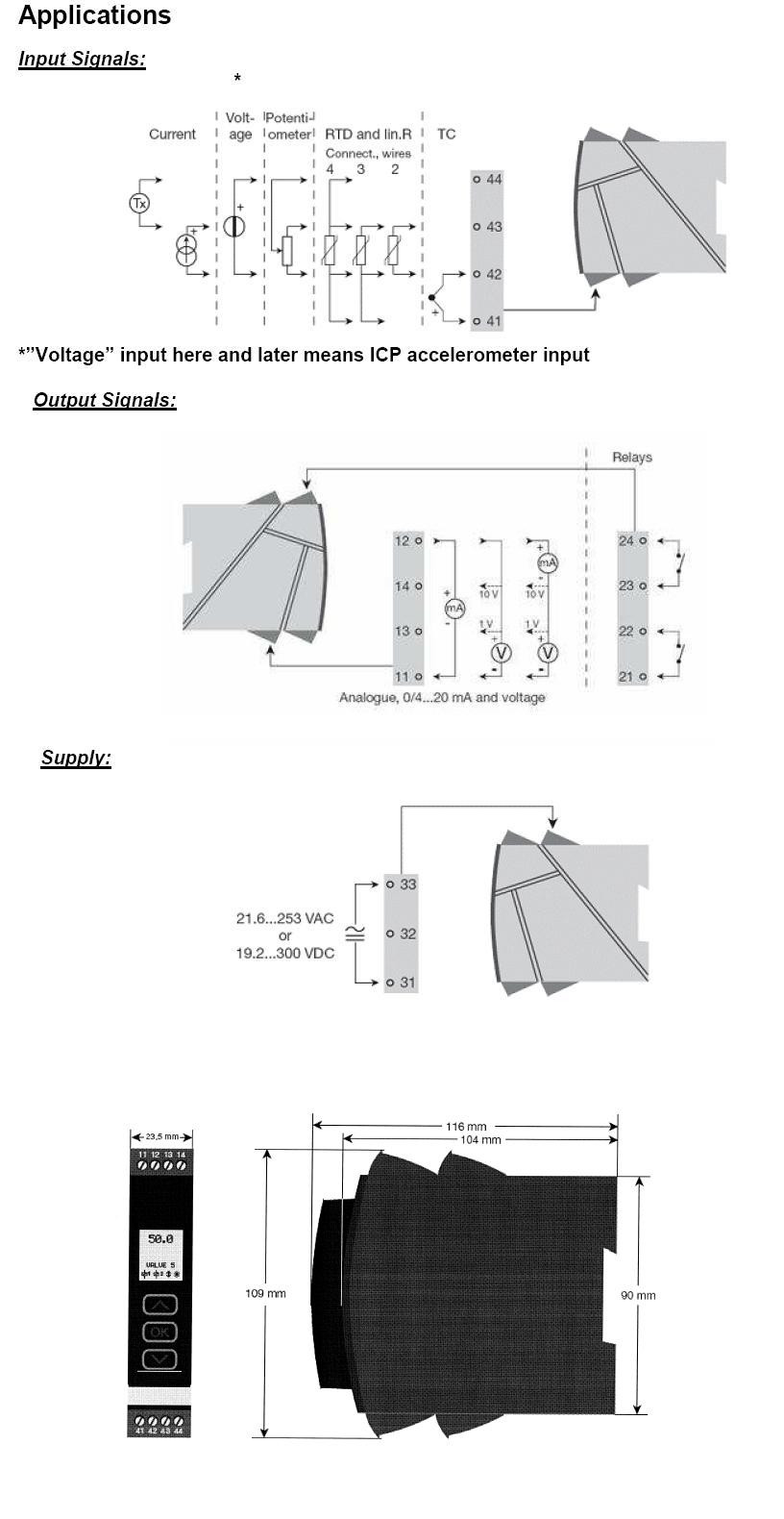

Model 682A16 Universal Transmitter
·DIN rail mount controller for use with universal inputs, 2 form A relays
Input for RTD, TC, Ohm, Potentiometer,mA and
ICPaccelerometers (Volts)
· 2-wire supply > 16Vdc
· Din Rail Mounting
· Output for Current, Voltage, and 2Relays
· Universal AC or DC Supply
Electrical Specifications
Operating Temperature Range: -20°C to +60°C.
Supply Voltage: 21.6 to 253Vac / 19.2 to 300Vdc
Maximum Power Consumption: 2.5W
Fuse: 400mA SB / 250Vac
Isolation voltage/operation 2.3kVac / 250Vac
Communication Interface: Model 070A80
SNR:60dB minimum, 0-100kHz
Response Time (0-90%): Temperature: £ 1 second
mA / V: £ 400ms
Calibration Temperature: 20 to 28°C
Current Output:
Signal Range (span): 0 to 20mA
Programmable signal ranges: 0-20 / 4-20 / 20-0 / 20-4 mA
Load (max.): 20mA / 800W / 16Vdc
Load Stability: £ 0.01% of span / 100W
Sensor Error Detection: 0 / 3.5 / 23 mA / None
Current Limit: £ 28mA
Voltage Output:
Signal Range: 0 to 10Vdc
Programmable Signal Ranges: 0-1 / 0.2-1 / 0-10 / 0-5 / 1-5 / 2-10 / 1-0 / 1-0.2 / 5-0 / 5-1 / 10-0 / 10-2 Vdc
Load (minimum): 500kW
Relay Outputs:
Relay Functions: Setpoint, Window, Sensor Error, On/Off
Hysteresis in % / counts: 0.1 to 25% / 1-2999
On/Off Time Delay 0 to 3600 seconds
Sensor Error Detection Break/Make/Hold
Max. Voltage: 250Vrms
Max. Current: 2A / AC or 1A / DC
Max. AC Power: 500 VA
Observed Authority Requirements:
EMC 2004/108/EC (Emissions and Immunity): EN 61326
LVD 73/23/EEC: EN 61010-1
UL Safety Standard (Pending): UL 508
PHYSICAL
Size (Width x Height x Depth) : 23.5 mm x 109 mm x 104 mm
Weight : 170 gm

※OPTION
- Display LCD (option)
