 Culvert safeguard |
| |
|
|
|
|
|
| |
|
|
|
| |
제품명 |
: |
Culvert safeguard |
| |
모델명 |
: |
PSMPC2 |
| |
제조업체 |
: |
파인시스 |
| |
가격 |
: |
견적가 |
| |
결재방법 |
: |
|
| |
최소주문량 |
: |
|
| |
납기 |
: |
2주 |
| |
운송방법 |
: |
|
| |
반품여부 |
: |
불가 |
| |
담당부서 / 담당자 |
: |
기술영업팀 / |
| |
연락처 |
: |
032-507-8772 |
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
 |
|
| |
 |
| 산업현장 Pannel 모니터 일체형 PC |
 |
Fanless Industrial Design
10.5” LCD Display w/LED Backlight
365/7/24 Playing with Low Power
1 x 15P VGA / 1 x HDMI
2 x RJ45 Gb LAN
2 x USB 3.0 ports(Total 4EA)
3 x 9P RS232 / 1 x 422/485
Watchdog supported , VESA Mounting
Extended operating temperature -20℃ ~ 70℃ |
 |

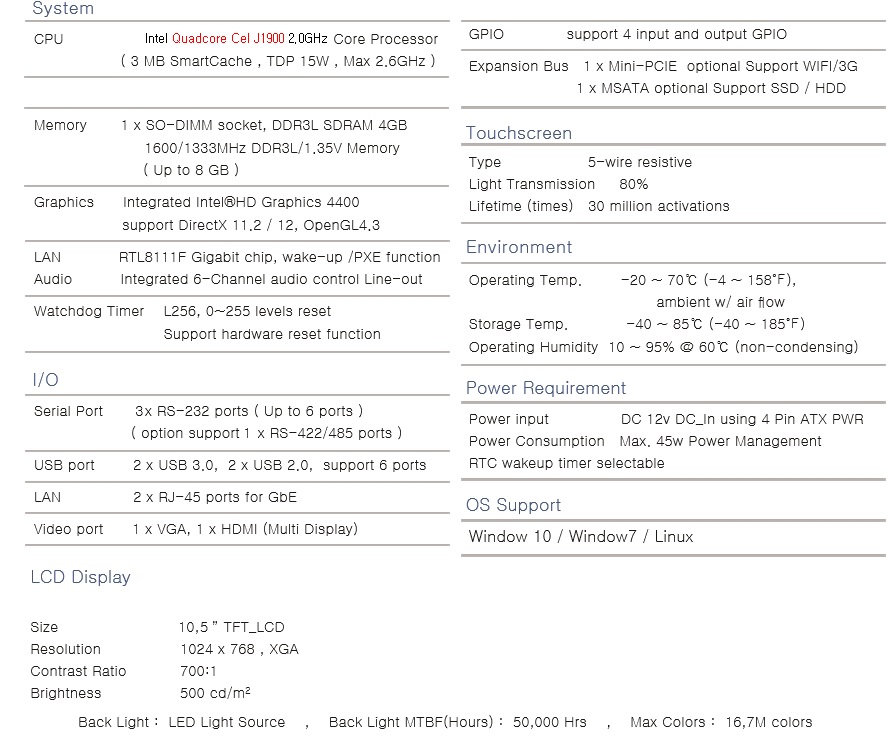

System
CPU Intel Quadcore Cel J1900 2.0GHz
Memory 1 x SO-DIMM socket, DDR3L SDRAM 4GB
1600/1333MHz DDR3L/1.35V Memory
Graphics Integrated Intel®HD Graphics 4400 support DirectX 11.2 / 12, OpenGL4.3
LAN RTL8111F Gigabit chip, wake-up /PXE function Audio
Integrated 6-Channel audio control Line-out
Watchdog Timer L256, 0~255 levels reset
Support hardware reset function
I/O
Serial Port 3 x RS-232 ports ( Up to 6 ports ) ( option support 1 x RS-422/485 ports )
USB port 2 x USB 3.0, 2 x USB 2.0, support 6 ports
LAN 2 x RJ-45 ports for GbE
Video port 1 x VGA, 1 x HDMI (Multi Display)
GPIO support 4 input and output GPIO
Expansion Bus 1 x Mini-PCIE optional Support WIFI/3G
1 x MSATA optional Support SSD / HDD
Environment
Operating Temp. -20 ~ 70℃ (-4 ~ 158℉),
ambient w/ air flow
Storage Temp. -40 ~ 85℃ (-40 ~ 185℉)
Operating Humidity 10 ~ 95% @ 60℃ (non-condensing)
Power Requirement
Power input DC 12v DC_In using 4 Pin ATX PWR Power Consumption
Max. 45w Power Management RTC wakeup timer selectable
|
|
 |
|
 |
|
|
|
|
|
